Technical Specification/技術規格

- Size/規格：DN40-DN800
- End/連接法蘭：ISO PN6/10/16
- Face to Face/結構長度：DIN 3202 F3
- Work Pressure/工作壓力：PN16  DN50-DN400    PN10  DN450-DN800
- Work Temperature/工作溫度：-20℃～100℃

Structure Character/結構特點

- Different material of seat for different working condition.
- Small volume, light weight, integrated structure, easy maintenance.
- Full tightness, Zero leakage.
- Short opening and closing course, quick closing, low water hammer pressure.
- Suitable in horizontal and vertical direction installation, easy installation..

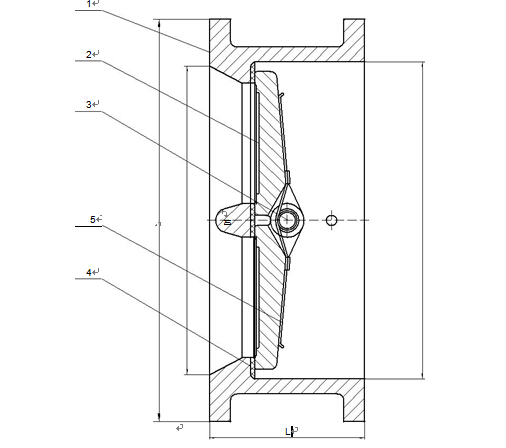

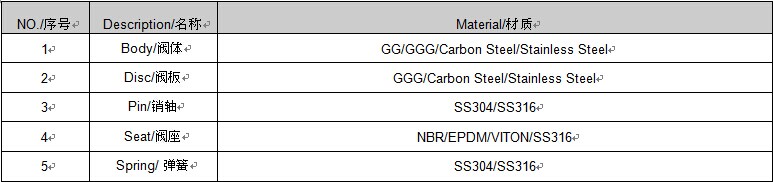

Main Components and Materials/主要零件和材質

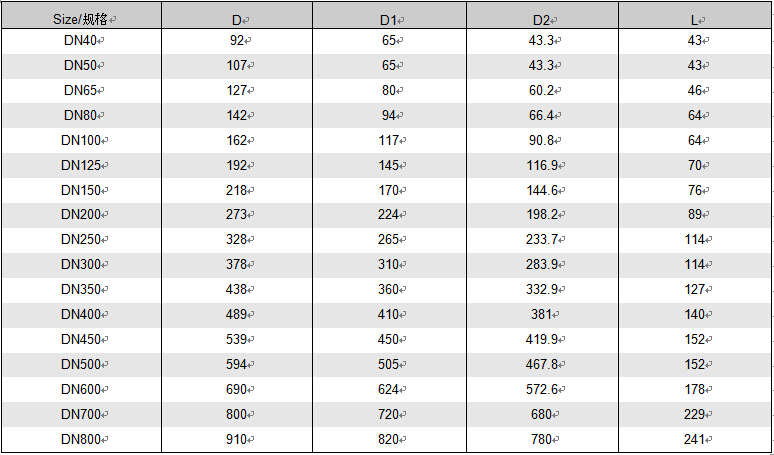

Dimensions/尺寸
