Product introduction
Technical Specification/技術規格
- Size/規格：DN50-DN800
- End/連接法蘭：ISO PN6/10/16
- Work Pressure/工作壓力：PN10/PN16
- Work Temperature工作溫度：-20℃～80℃
Structure Character/結構特點
- light flap, high opening.
- Low fluid resistance, perfect Kv value; full tightness, Zero leakage.
- Stable performance, without vibration and noise, low water hammer pressure.
- Suitable in horizontal and vertical direction installation, easy installation.

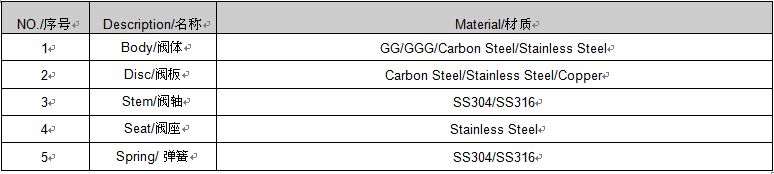

Main Components and Materials/主要零件和材質

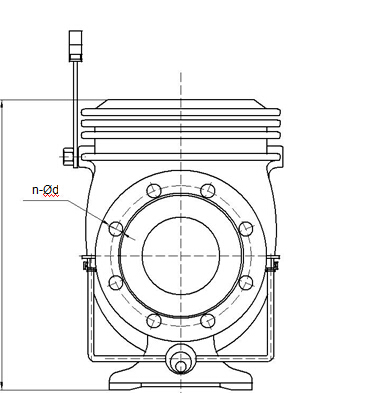

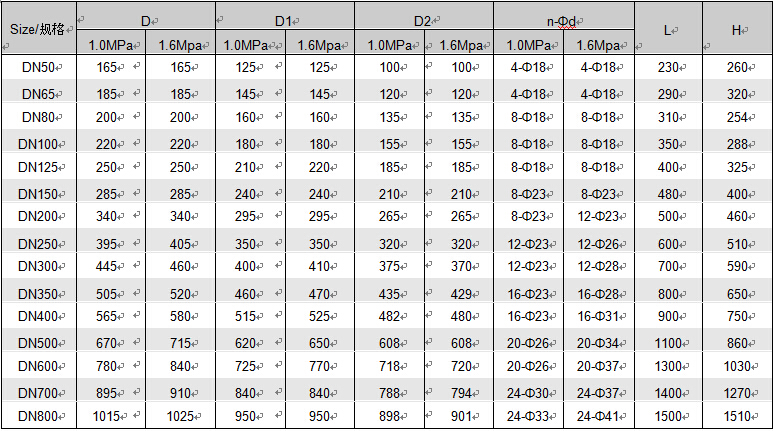

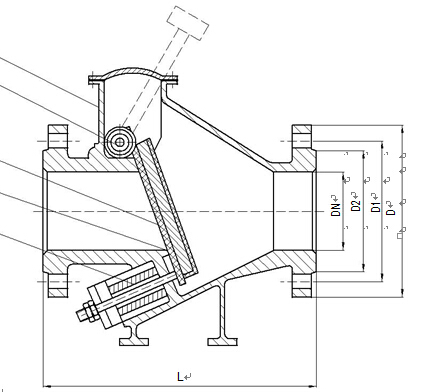

Dimensions/尺寸
