Flow control valve is composed by the main valve, flow regulating valve, needle valve, pilot valve, ball valve and piezometer, etc.

 Valve is installed at the influent pipelines of the water supply system.

 By setting the flow rate of upper pilot valve(2) and flow regulating valve(3), the flow rate go through the main valve is maintained and it will not change if any water pressure change from entry line.

 Flow control valve has two types, Piston type from DN20~DN500, diaphragm type from DN600~DN800. This valve is widely used in influent pipelines in high-rise buildings, Industries water supply system to control flow rate.

Technical Specification/技術規(guī)格

- Size/規(guī)格：DN20-DN800
- Diaphragm type/隔膜式：DN20-DN500；
- Piston type/活塞式：DN600-DN800
- End/連接法蘭：ISO PN6/10/16
- Work Pressure/工作壓力：PN10/PN16
- Work Temperature/工作溫度：0℃～80℃

Structure Character/結構特點

- Full Bore Design, low fluid resistance and large flow.
- Easy to adjust and reset, Large operating range.

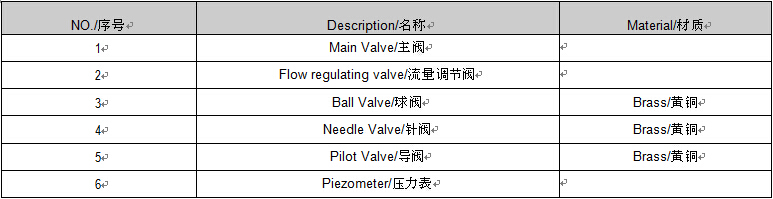

Main Components and Materials/主要零件和材質

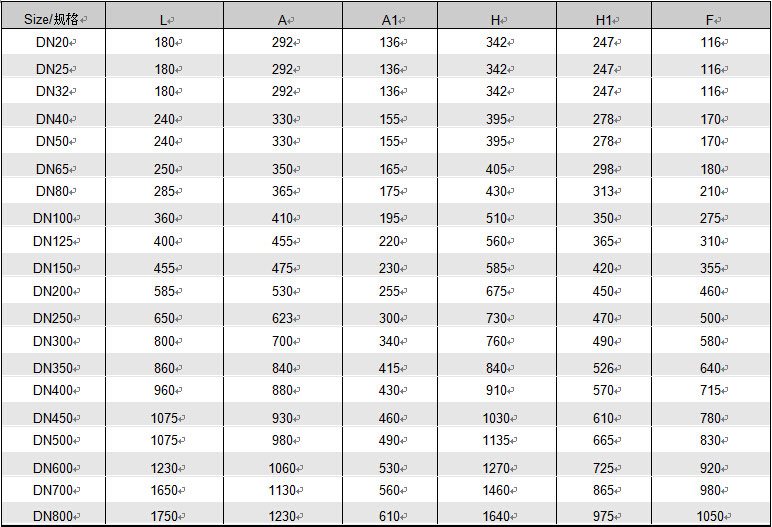

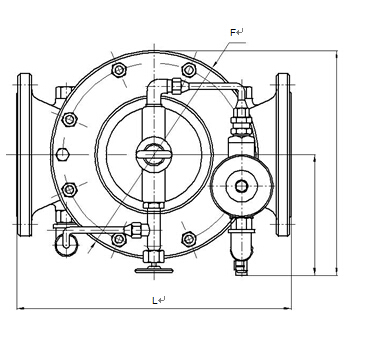

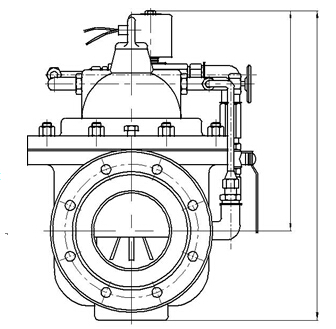

Dimensions/尺寸
